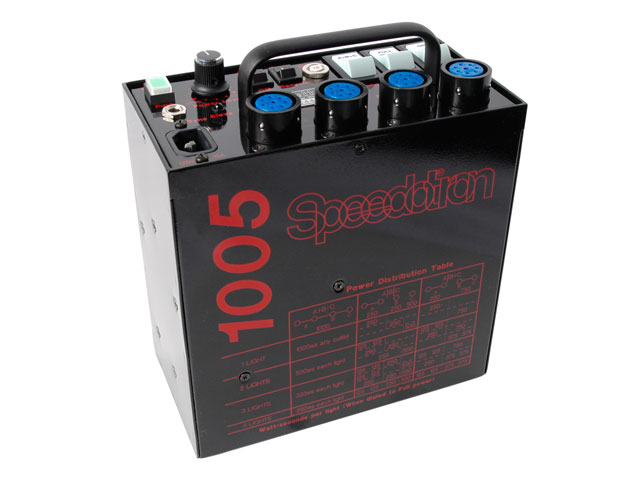

1005 LV Power Supply - 11243E

The Speedotron 1005 LV Power Supply is the latest addition to the successful Black Line Lighting System.

Fast and powerful enough to meet the needs of today's digital studio photographers, yet weighing in at less than eight pounds. The 1005 offers multi-light capability along with small size and rugged portability needed for on-location shooting.

The 1005 low voltage trigger connection and built-in photocell slave circuits ensure reliable operation with all of today's digital and traditional film cameras.

Power . . . . . . . .  1000 Ws at Full Power

          . . . . . . . .  44 Ws minimum power with a single light unit

          . . . . . . . .  22 Ws minimum each when 2 lights are used

Recycle Times  . .  1.1 seconds 1000 Ws in fast recycle mode

                      . .  2,5 seconds in slow mode

Light Output  . . .  ISO 100 GN of 408

Flash Duration with 103 Light Unit

@ 1000 Ws  . . . . 1/360   seconds

@   250 Ws  . . . . 1/1250 seconds

Photo Slave Cell Built-in

Light Unit Outlets:

4 in 3 separate channels

Ratio Between Outlets:

A+B+C  -  A|B|C  - A|B+C

Power Range in Stops:

Full to -2.5 in 1/4 f-stop increments

Power Requirements:

95-130 volts AC, 50-60 Hz, 15 Amps maximum

Weight  . . . . . . .  7.9 lbs

Size  . . . . . . . . .  8” L  x 4.625” W  x 9.5" H

  • € 1.919,00
Card image cap

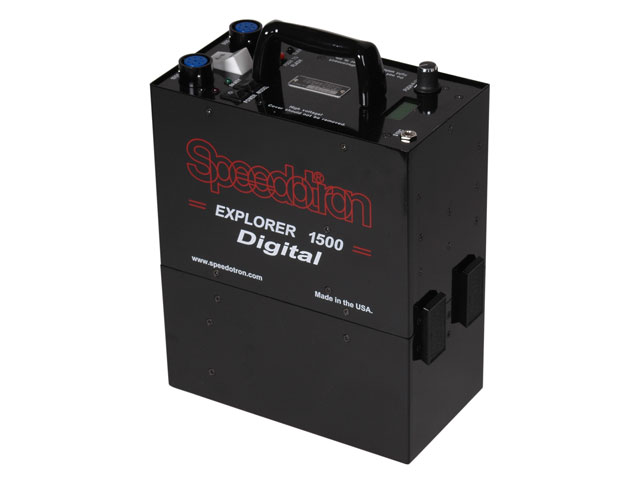

Explorer 1500 Digital Portable Power Supply 220/230V - 11256E

The Speedotron Explorer 1500 Digital Portable Power Supply, the latest Black Line System innovation. The Explorer provides a cost effective solution to gas powered generators or high priced European portable systems for those location shots where electrical power is not available.

Maximum Flash Power . . . . . .  1500 WS

Minimum Flash Power  . . . . . .  15.6 WS

Flash Duration w/ 103 Light Unit

@ 1500 WS . . . . . . . . . . . . . . . . .  1/825   seconds

@ 1000 WS . . . . . . . . . . . . . . . . .  1/1100 seconds

@   500 WS . . . . . . . . . . . . . . . . .  1/1700 seconds

Power Range in Stops . . . . . . . . .  7+ in 1/10 f-stopincrements

Light Unit Outlets . . . . . . . . . . . . .  2

Ratio Between Outlets . . . . . . . . .  2:1 or 1:1

Recycle Time at 1500 WS . . . . . .  3.5 seconds

Full Power Flashes Per Charge . .  up to 225

Lowest Power . . . . . . . . . . . . . . .   2500 plus

Modeling Lamp . . . . . . . . . . . . . .   yes

Battery Recharging Voltage . . . . .  85 to 265 volts (AC input)

Photo Slave Cell

Built-inLow Battery Warning & Shutdown

Weight . . . . . . . . . . . . . . . . . . . . .  24.8 lbs

Size . . . . . . . . . . . . . . . . . . . . . . .  9.5” x 5.4” x 11.7”




  • € 2.899,00
Card image cap

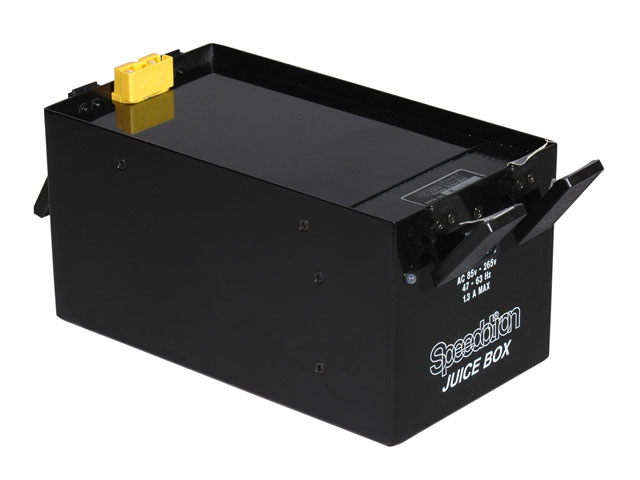

Explorer 1500 Juice Box 220/230V - 11253E

Spare battery module for Explorer 1500 Digital




  • € 849,00
Card image cap

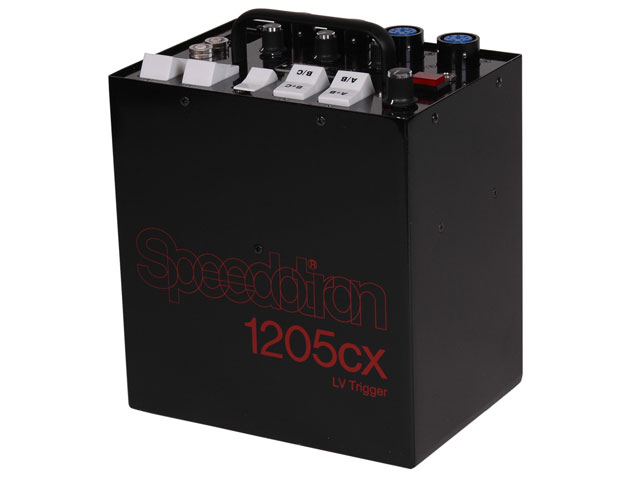

1205CX LV Power Supply 220/230V - 11249E

The 1205cx LV may be the perfect traveling pack. It delivers a very useful 1200Ws of power. With true power output ratioing, variable dial-down power and model lamp intensity, and four quick release light unit outlets, there are 189 output level variations available to match the needs of almost any shooting situation. 6.4x8.8x10", 15 lbs.

  • € 2.599,00
Card image cap

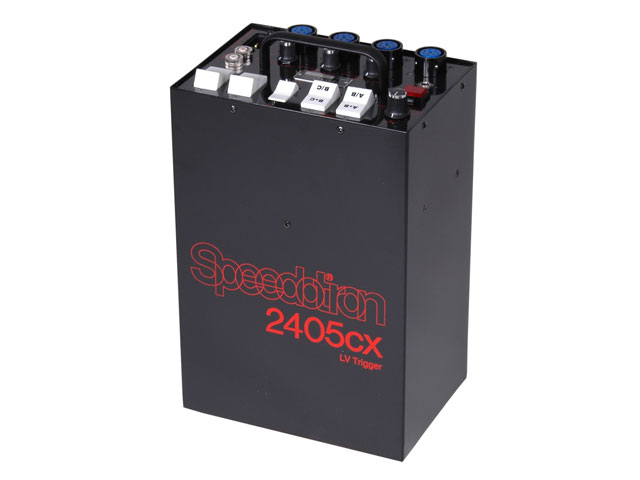

2405CX LV Power Supply 220/230V - 11254E

The 2405cx LV packs plenty of power when you need to travel. The compact and rugged pack produces a true 2400Ws of available energy. It has true power output ratioing and variable dial-down power and model lamp intensity. There are four quick release light unit outlets. 6.4x8.8x13", 23 lbs.

  • € 3.049,00
Card image cap

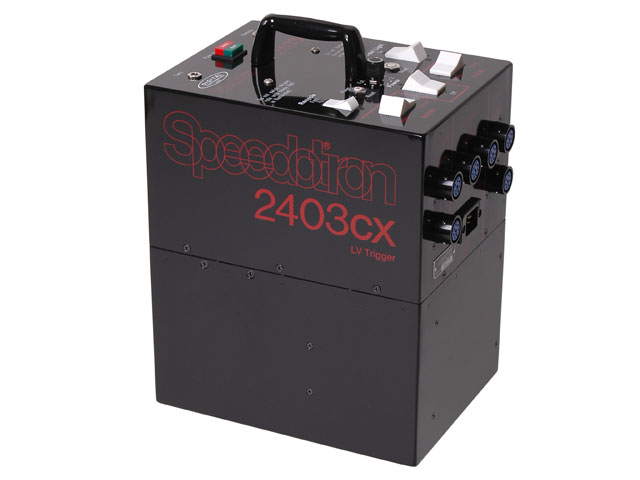

2403CX LV Power Supply 220/230V - 11260E

The 2403cx LV provides the studio photographer with the maximum in sophisticated lighting versatility. Utilizing true power output rationing, variable dial-down power control, and six quick release light unit outlets, there are 530 power options available from this 2400Ws pack. A remote control is available as an accessory to the 2403cx. 9x12x14", 28 lbs.

  • € 3.049,00
Card image cap

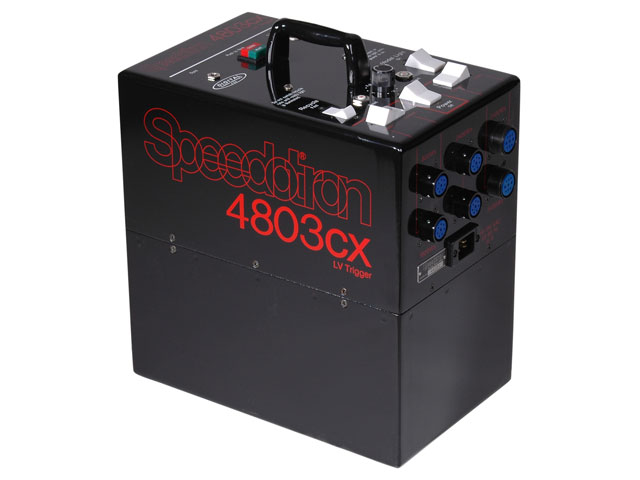

4803CX LV Power Supply 220/230V - 11261E

The 4803cx LV provides the studio photographer with the ultimate in power and sophisticated lighting versatility. Utilizing true power output ratioing, variable dial-down power control, and six quick release light unit outlets, there are 270 power options available from this 4800 watt-second (Ws) pack. It has four standard light unit outlets, and two special outlets that are capable of providing the full 4800Ws to a single 206VF light unit. A remote control is available as an accessory to the 4803cx.

  • € 3.899,00
